Wodaplug • WDS504G-E-R410 • 4GE EPON ONU, 4*10/100/1000Mbps

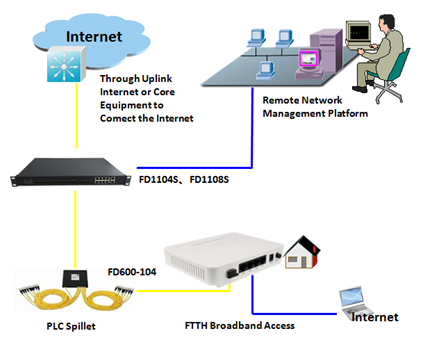

EPON ONU WDS504G-E-R410 je navržena především pro aplikace typu FTTH ,FTTO. EPON ONU FD104HC podporuje 1000Base-PX20+ standard s 1:64 maximálním optickým rozbočením a s dosahem 20km, obsahuje 1uplink GE PON port.

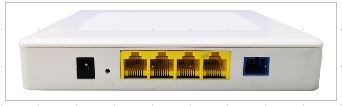

ONU WDS504G-E-R410 spolu s OLT realizují flexiblní síťovou strukturu se snadnou údržbou a nabízí kompletní řešení pro FTTx. ONU WDS504G-E-R410 má 1 PON port a 4*10/100/1000 M BASE-T porty .

Funkce a vlastnosti
  Support port-based rate limitation and bandwidth control;
  In compliant with IEEE802.3ah Standard
  Up to 20KM transmission Distance
  Support data encryption, group broadcasting, port Vlan separation ,etc.
  Support Dynamic Bandwidth Allocation (DBA)
  Support ONU auto-discovery/Link detection/remote upgrade of software;
  Support port mode of VLAN configuration
  Support power-off alarm function ,easy for link problem detection
  Support broadcasting storm resistance function
  Support port isolation between different ports
  Support port flow control
  Support ACL and SNMP to configure data packet filter flexibly
  Specialized design for system breakdown prevention to maintain stable system
  Support software online upgrading
  EMS network management based on SNMP ,convenient for maintenance

Specifikace

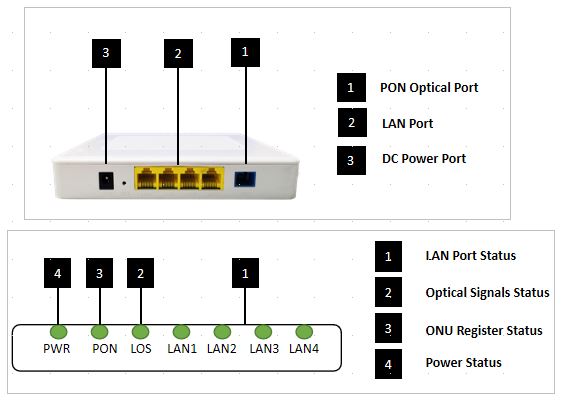

• PON Interface
   1 EPON optical interface
   Meet 1000BASE-PX20+ standard
   Symmetric 1.25Gbps upstream/downstream
   SC single-mode fiber
   split ratio: 1:64
   Transmission distance 20KM
• User Ethernet Interface
   4*10/100M or 4*10/100/1000M auto-negotiation
   Full/half duplex mode
   RJ45 connector
   Auto MDI/MDI-X
   100m distance
• Power Interface
   12V DC Power supply
• PON Optical Parameter
   Wavelength: Tx 1310nm, Rx1490nm
   Tx Optical Power: 0~4dBm
   Rx Sensitivity: -27dBm
   Saturation Optical Power: -3dBm
   Connector Type: SC
   Optical Fiber: 9/125?m single-mode fiber
• Data Transmission Parameter
   PON Throughput: Downstream 950Mbps; Upstream 930Mbps
   Ethernet: 100Mbps or 1000Mbps
   Packet Loss Ratio: <1*10E-12
   latency: <1.5ms
• Business Capability
   Layer 2 wire speed switching
   Support VLAN TAG/UNTAG,VLAN conversion
   Support Port-based speed limitation
   Support Priority classification
   Support storm control of broadcast
   Support loop detection
• Network Management
   Support IEEE802.3 QAM, ONU can be remotely managed by OLT
   Support Remote management through SNMP and Telnet
   Local management
• Management Function
   Status monitor, Configuration management, Alarm management,
   Log management
• Shell
   Plastic casing
• Power
   4FE: <3.9W, 12V/0.5A power supply adapter
   4FE+WIFI: <4.9W, 12V/0.6A power supply adapter
   4GE: <4.3W, 12V/0.5A power supply adapter
   4GE+WIFI: <5.3W, 12V/0.6A power supply adapter
• Physical Specifications
   Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H)
   Item weight:0.2kg
• Environmental Specifications
   Operating temperature: 0 to 50oC
   Storage temperature: -40 to 85oC
   Operating humidity: 10% to 90%(Non-condensing)
   Storage humidity: 10% to 90%(Non-condensing)
